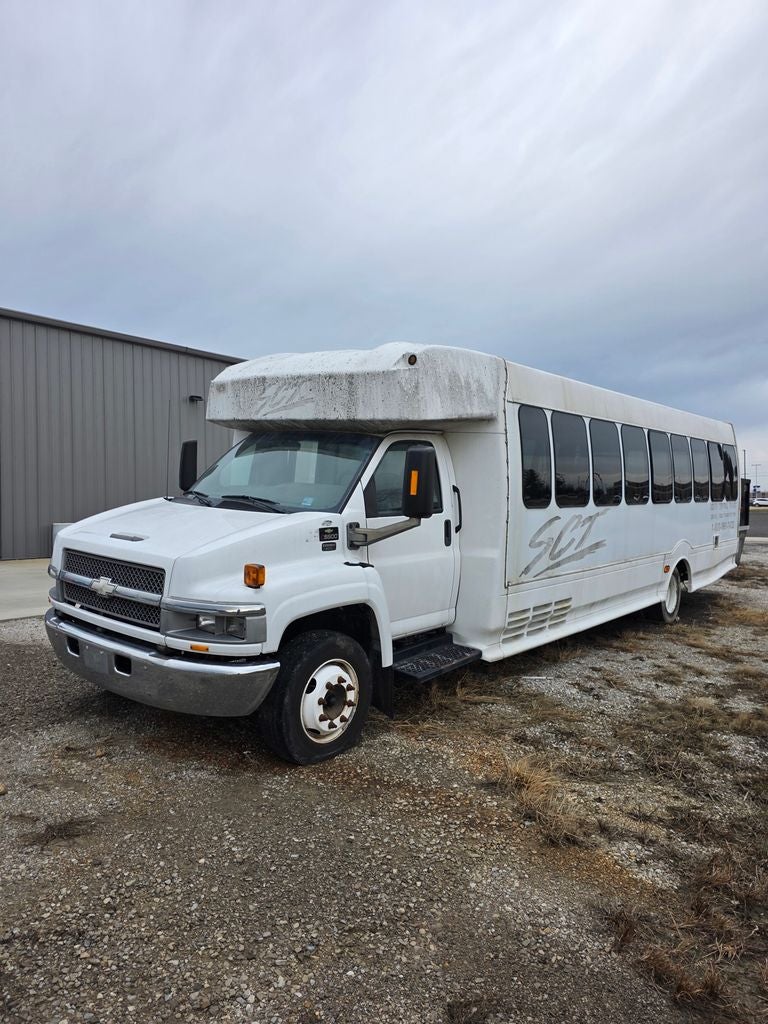

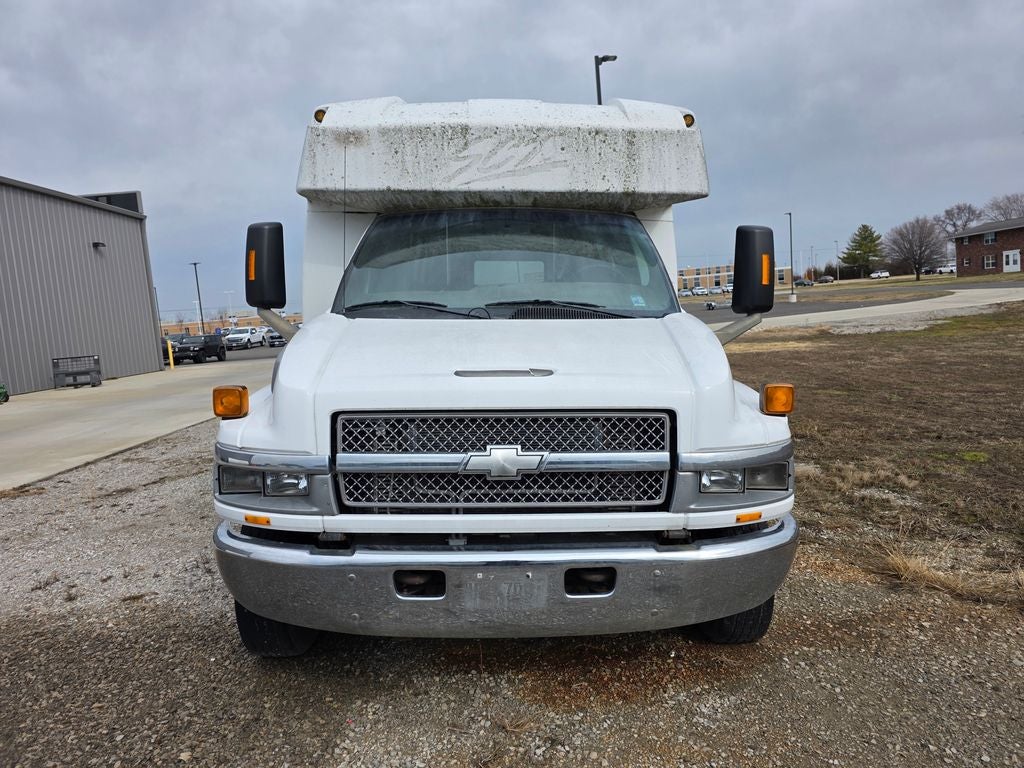

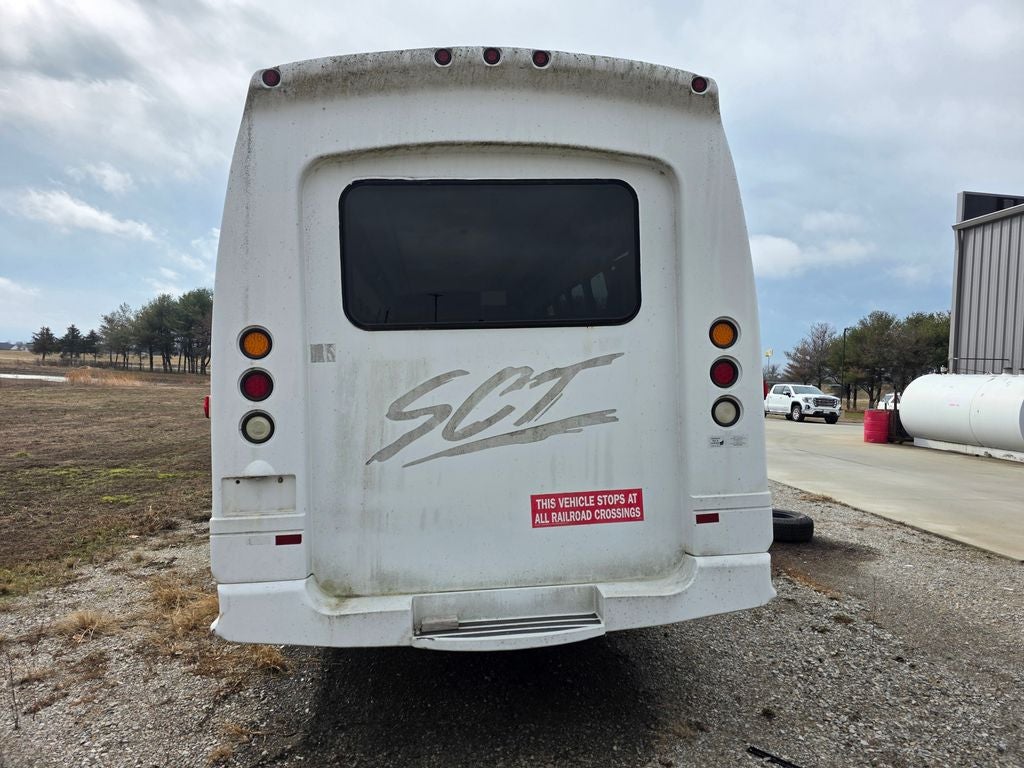

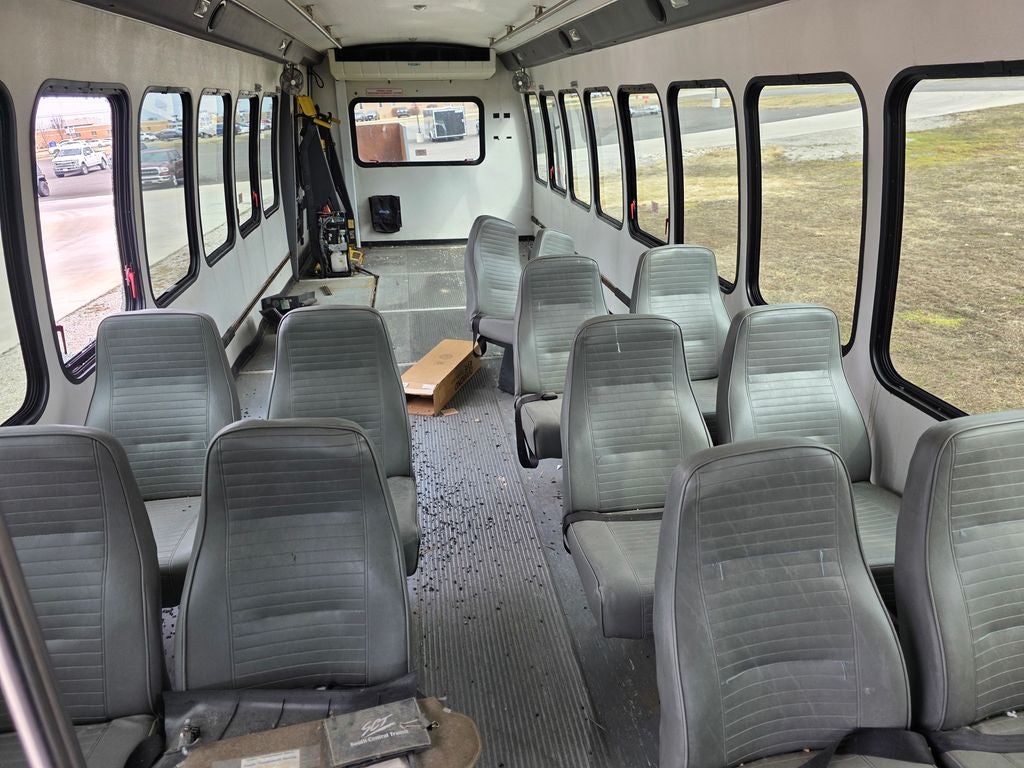

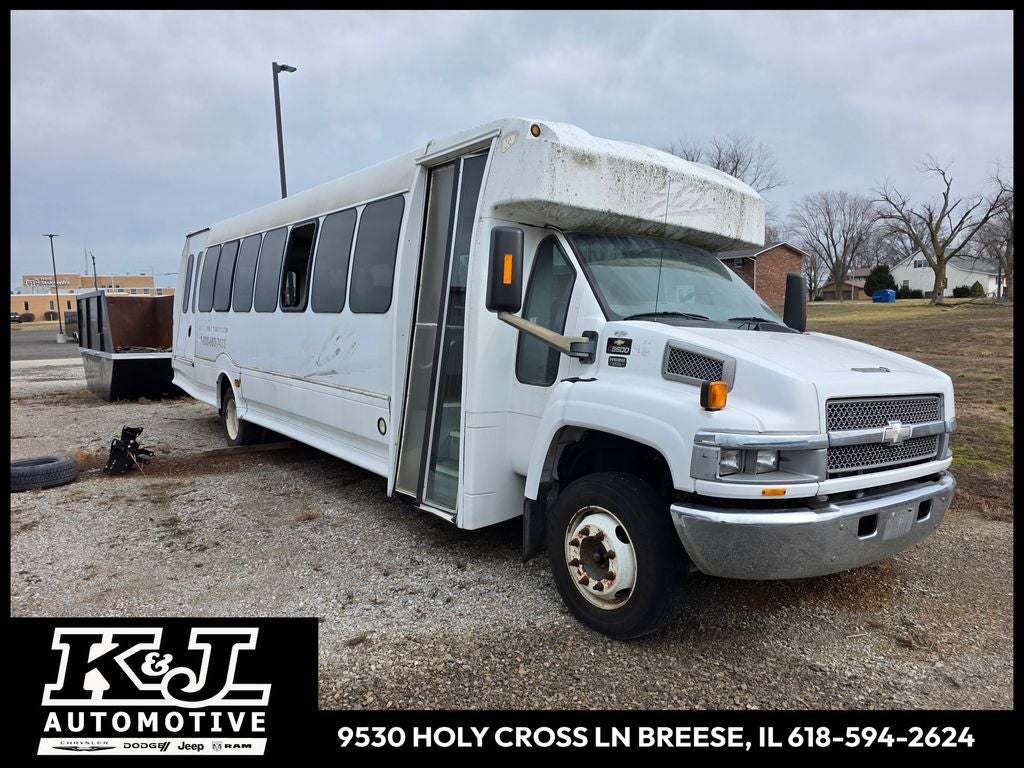

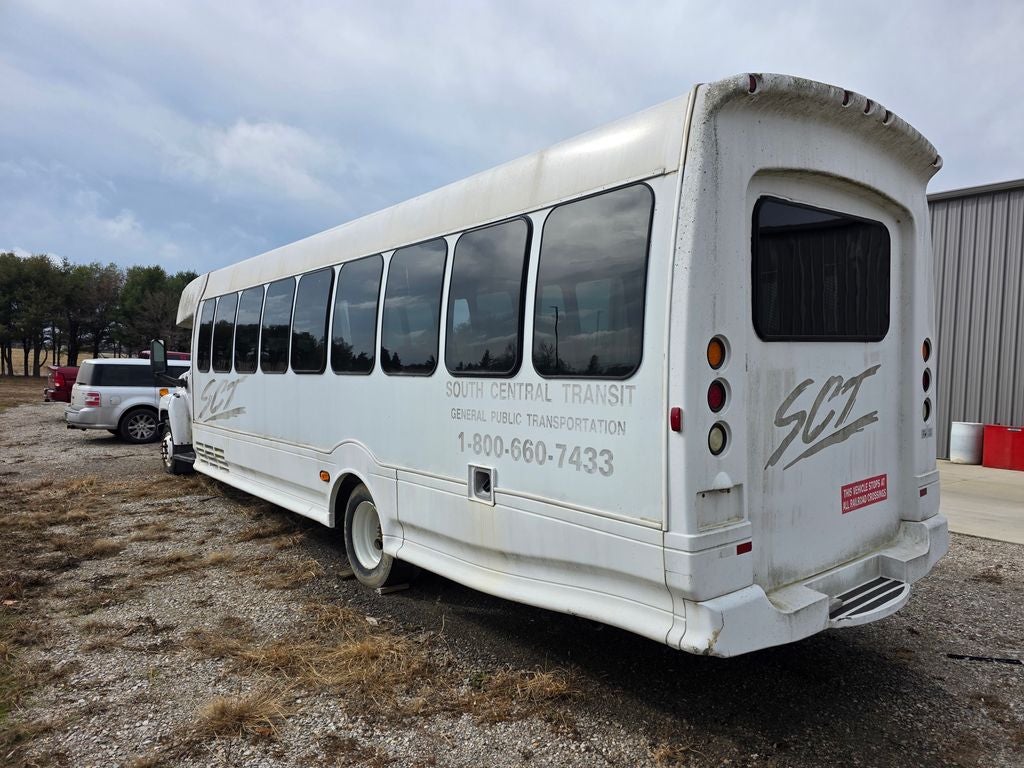

2005 Chevrolet CC5500 Commercial Cutaway
Visit our Store
- K & J Chrysler Dodge Jeep Ram
-
9530 Holy Cross Lane
Breese, IL 62230
- Sales: 618-844-9351
- Service: 618-844-9340
- Parts: 618-844-9353
Vehicle Information
VIN:
1GBJ5V1255F534557
Stock #:
1747
Model Code:
CC5V042
-
Body Style Cutaway -
Exterior Color Summit White
-
Interior Color Very Dark Pewter
-
Mileage 0
-
Engine 8 Cyl - 6.6 L -
Transmission Automatic -
Fuel Type Diesel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- Cruise Control
Lifetime Warranty Used
All Features
- GVWR, 19,500 lbs. (8845 kg) capacity - GCWR limited to 26,000 lb. (11,794 kg)
- Air cleaner, dry type
- Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)
- Road Speed Governor, controlled by the speed rating of the tires ordered. - which will be less than or equal to 85 mph (137 kph); 75 mph (120 kph) with 245/70R19.5 tires (required for 22,000 to 26,000 lb GVWRs)
- Alternator, AD230 Delco Remy 105-amp maximum (N/A with ANM fire and rescue or YF2 ambulance packages)
- Exhaust, side exit forward of right rear wheels (N/A with ANC shuttle bus or B3D school bus package)
- Front axle, 7000 lbs. (3175 kg) capacity - I-beam Wide-trac. Up to 53 degree turn angle, (Includes 4-piston brake apply calipers) (Requires GZG or GZJ GVWRs)
- Front suspension, tapered leaf, 7000 lbs. (3175 kg) capacity (includes stabilizer) (Requires GZG or GZJ GVWRs)
- Front shock absorber, diameter 1.375" (35mm)
- Front stabilizer bar, 2" x 2" square tube (5 cm x 5 cm)
- Front wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole. 10,000 lbs. (4536 kg) capacity, (Requires Q83 steel rear wheel)
- Front tire size, 225/70R19.5F - 7280 lbs. (3802 kg) capacity, (With R4A Goodyear or R4L Michelin, requires R3C front premium highway tread; with R4N Bridgestone requires R3M front all season tread)
- Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
- Front tread, premium, highway (Requires R4A Goodyear or R4L Michelin)
- Rear axle, single speed, 13,500 lbs. (6123 kg) capacity - full floating, includes 2-piston brake applied calipers (Requires GZG or GZJ GVWs)
- Rear wheel drive
- Rear suspension, multi-leaf, 13,500 lbs. (6123 kg) capacity (Requires GZG, or GZJ GVWRs and GL8 rear axle)
- Rear shock absorber, 1.375" (35mm)
- Rear wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole, 20,000 lbs. (9072 kg) capacity, (Requires Q82 steel front wheel)
- Rear tire size, 225/70R19.5F - 13,660 lbs. (6196 kg) capacity, (With S4A Goodyear, requires S3C rear premium highway tread or S3H rear traction tread; with S4L Michelin, requires S3C rear premium highway tread or S3J rear highway traction tread; with S4N Bridgestone requires S3M rear all season tread)
- Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
- Rear tread, premium, highway (Requires S4A Goodyear or S4L Michelin)
- Wheelbase, 166" (420.4 cm) - with 100" (254 cm) CA with 171 (434.3 cm) CE. Includes a 6 mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63 (GVW's 18,000 - 19,500 lbs.)
- Frame, 6mm - 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 381,500 Section Modulus 7.63
- Fuel tank, single, 40-gallon (151L) fuel capacity - gas or diesel, located behind rear axle with fuel fill neck through frame rail, DRIVER SIDE FILL NECK ONLY. NO AUXILIARY FUEL PORTS MINIMUM OVERHANG = 60" (5 FEET)
- Fuel sender assembly. Robust fuel pump
- Tethered fuel cap
- Brakes, front, power, 4-wheel disc, 4 channel ABS 4-piston - (See Front Axle options more more details)
- Brakes, rear, power, 4-wheel disc, 4 channel ABS 2-piston - (See Rear Axle options for more detail)
- Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
- Windows, Solar-Ray tinted - all windows
- Exterior roof drip moldings
- Provisions for mounting front license plate
- Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
- Windshield wipers, intermittent, with pulse washers
- Daytime running lights
- Steps under cab doors
- Mirror, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
- Paint scheme, solid, upper color
- Paint scheme, solid, lower color
- Molded vinyl floor covering
- Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
- Two sided single common key for doors and ignition
- Headlamp warning buzzer

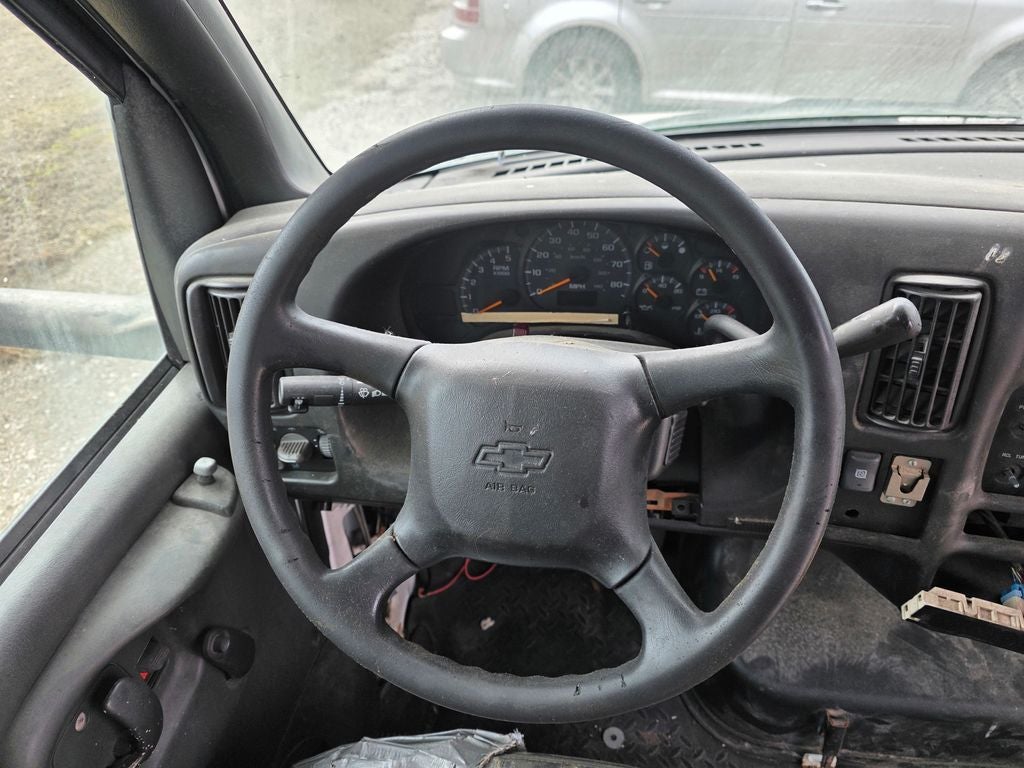

- Steering wheel, simulated leather
- Sunshades, passenger side and driver side, vinyl-covered
- Warning tone, key-in-ignition
- Seat belt warning indicator
- Trim console - located next to driver's seat, and two cupholder
- Coat hooks (2) located on cab back panel
- Cloth headliner
- Steering, power - ZF variable ratio power
- Powerpoints - one in-cab power source (in addition to optional cigarette lighter) for electrical plug-in accessories
- Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
- Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
- Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
- Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
- Radio, Delco AM-FM stereo radio - with coaxial speakers in all door panels
- Interior trim, Very Dark Pewter (Requires 69U Very Dark Pewter Vinyl or 69C Very Dark Pewter Cloth)
- Seat trim, vinyl, Very Dark Pewter
- 4-wheel disc, 4-channel ABS
- Air bags, Supplemental Inflatable Restraints not included. This vehicle does not include any air bags
- Daytime running lights

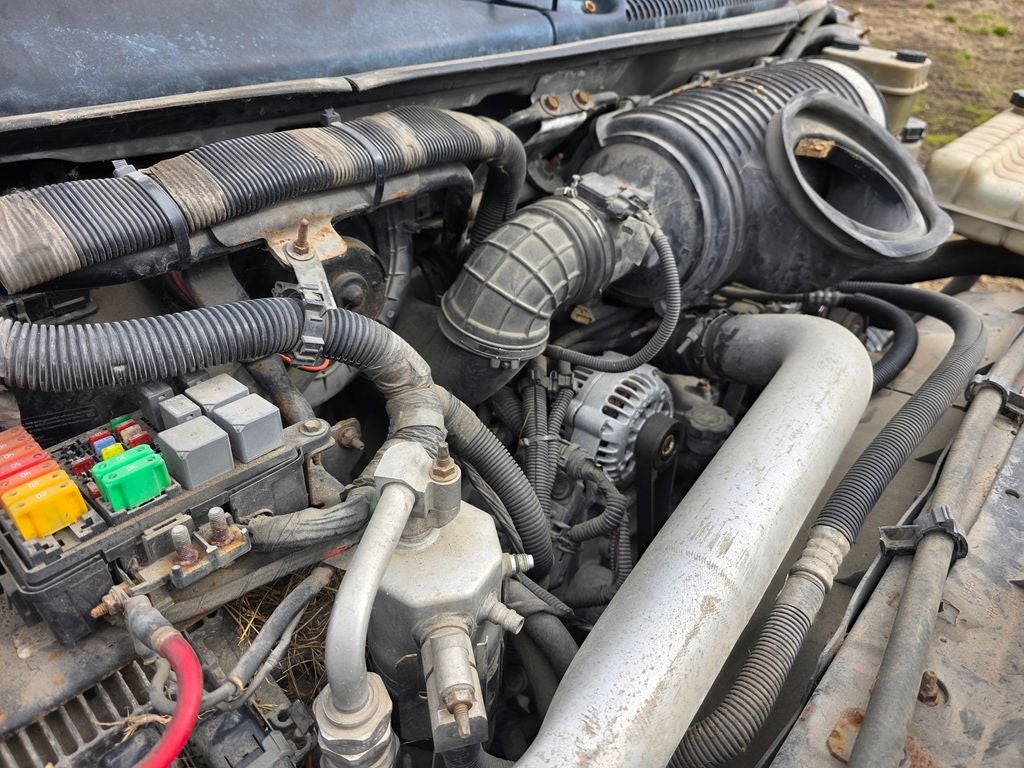

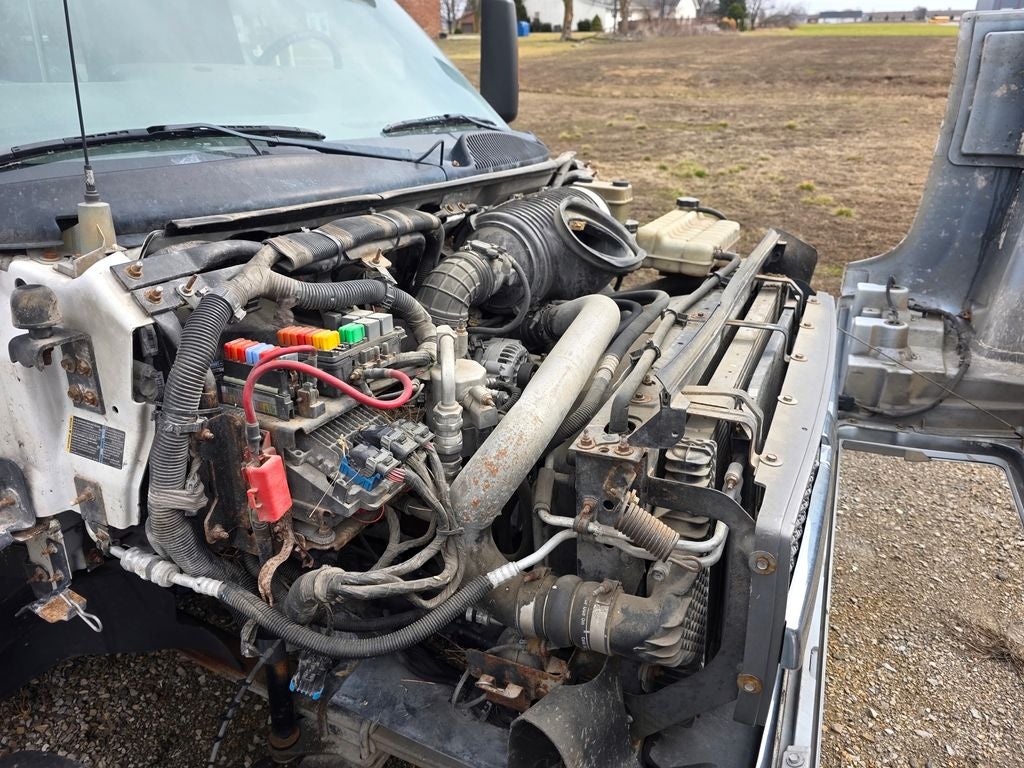

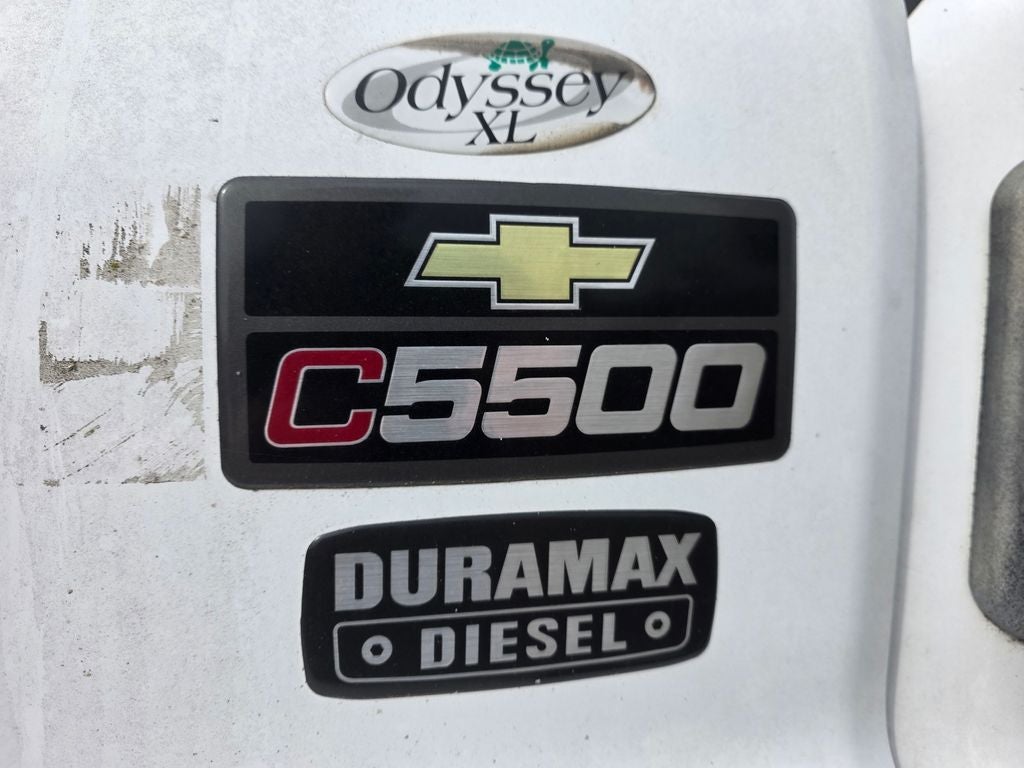

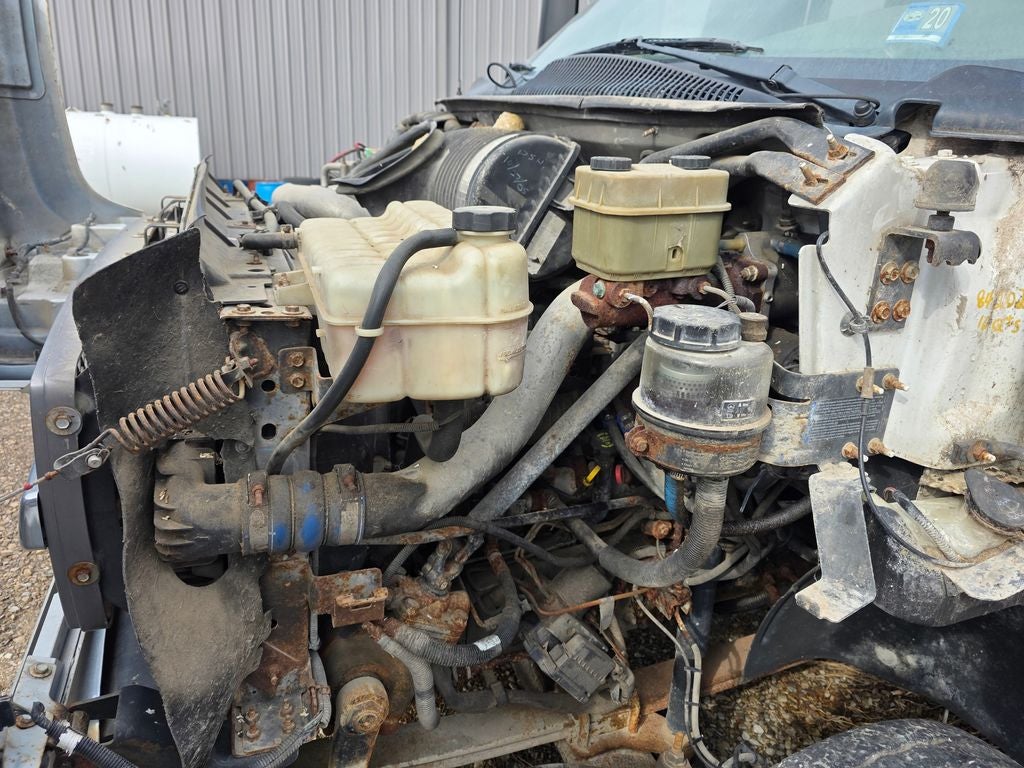

DURAMAX DIESEL 6600, 300 HP (223 KW) @ 3000 RPM, 520 LB-FT (702 N-M) TORQUE @ 1,600 RPM
- (Includes KPJ Engine shutdown)
- 'L' CHANNEL
- 1000-WATT 110V
- 19.5' X 6.75' (49.5 CM X 17.1 CM) STEEL DISC (STD)
- 245/70R19.5H
- 259 (659.7 CM) -with 194' (491.5 cm) CA with 300' (762 cm) CE. Includes a 8 mm 80 000 psi (551 600 kPa) yield strength steel frame RBM: 824 800 Section Modulus 10.31 GVW's
- 26 000 LBS. (11 794 KG) GVWR SALES PACKAGE (Includes C6V GVWR FM8 front axle HPK rear axle and F08 frame reinforcement)
- 26 000 LBS. (11 794 KG) CAPACITY
- 4-Wheel Disc Brakes
- 4.88:1
- 75 MPH (120 KPH) ROAD SPEED GOVERNOR
- 8000 LBS. (3629 KG) CAPACITY (Includes 4-piston brake apply calipers)
- ABS
- AIR CONDITIONING
- AM/FM Stereo
- AUTOMATIC ALLISON 2200PTS PUPIL TRANSPORTATION/SHUTTLE SERIES -with 0.74 overdrive. Torque Rating: 520 lb-ft (705 N-m). Column shift and Parking pawl. Includes transmission-oil cooler located inside radiator and an air-to-oil auxiliary cooler.
- AUTOMATIC ENGINE SHUTDOWN WITH ALARM -Includes reset feature.
- Bucket Seats
- CALIFORNIA STATE REQUIREMENTS
- CRUISE CONTROL
- DANA 19060S 19 000 LBS. (8618 KG) CAPACITY
- Daytime Running Lights
- DELCO AM-FM STEREO RADIO -with coaxial speakers in all door panels (STD)
- DELETE PASSENGER SIDE DOOR
- DELETE REAR TAIL LAMPS
- DELETE ROOF MARKER LAMPS
- DELUXE FRONT APPEARANCE PACKAGE -(Includes Up level stationary grille V46 chrome front bumper quad painted headlamps with chrome trim)
- DRIVER CONVENIENCE PACKAGE Includes N33 tilt-wheel and K34 cruise control
- DRIVERS SIDE ONLY
- DUAL 700 CCA DELPHI HEAVY-DUTY FREEDOM BS 31-700 12V
- DUAL AD230 DELCO REMY 105-AMP MAXIMUM
- DURAMAX DIESEL 6600 300 HP (223 KW) @ 3000 RPM 520 LB-FT (702 N-M) TORQUE @ 1 600 RPM (Includes KPJ Engine shutdown)
- ELECTRIC REMOTE CONTROL LIGHTED HEATED 102' (259 CM) WIDE LOAD INTEGRAL ARM INTEGRAL CONVEX MIRROR
- Engine 6.6L
- EXTRA STRENGTH HIGHWAY
- EXTRA-STRENGTH HIGHWAY
- FRONT CHROMED STEEL THICKNESS 5/32' (3.9 mm)
- FRONT TOW HOOKS FRAME-MOUNTED
- HIGH IDLE SWITCH
- HIGH-BACK BUCKET FIXED HEIGHT MANUAL ADJUSTER (STD)
- INSIDE DAY/NIGHT REARVIEW MIRROR
- Intermittent Wipers
- MICHELIN
- NO PASSENGER SEAT DESIRED
- OPTION PTO NOT REQUIRED (STD)
- OVER THE AXLE
- Power Outlet
- Power Steering
- REAR STABILIZER BAR
- Rear Wheel Drive
- Running Boards/Side Steps
- SHUTTLE BUS -(Includes C60 air conditioning UZA roof marker delete N12 rear exit exhaust system UEA tail lamp delete provisions for rear heat on driver side provisions for 100 amp service on driver side battery located under driver door.) aft axle fuel tank with dual auxiliary fuel ports and driver side/passenger side fill capability APL passenger seat delete WE7 passenger door delete). (Frames: With GZG or GZJ GVWRs includes a 6 mm 50 000 psi (344 750 kPa) yield strength steel frame RBM: 381 500 Section Modulus 7.63. With GW2 or GW4 GVWR Sales packages includes a 80 000 psi (551 600 kPa) yield strength steel frame RBM: 824 800 Section Modulus 10.31)
- SINGLE 60-GALLON (227L) FUEL CAPACITY Includes 2 auxiliary fuel ports
- STABILIZER BAR
- Steel Wheels
- TAPERED LEAF 19 000 LBS. (8618 KG) CAPACITY
- TAPERED LEAF 8000 LBS. (3629 KG) CAPACITY
- TILT-WHEEL ADJUSTABLE STEERING
- Tires - Front All-Season
- Tires - Rear All-Season
- TRANSYND SYNTHETIC AUTOMATIC TRANSMISSION FLUID
- VERY DARK PEWTER (STD)
- VINYL SEAT TRIM (STD)
- Vinyl Seats
- Front Frame Rating: - TBD -
- Cold Cranking Amps @ 0° F (Primary): 600
- Maximum Alternator Capacity (amps): 105
- Total Cooling System Capacity (qts): 27.3
- Gross Axle Wt Rating - Front (lbs): 7000
- Gross Axle Wt Rating - Rear (lbs): 13500
- Curb Weight - Front (lbs): 4544.9
- Curb Weight - Rear (lbs): 2802.8
- Gross Vehicle Weight Rating Cap (lbs): 19500
- Gross Combined Wt Rating (lbs): 26000
- Suspension Type - Front: Tapered Leaf
- Suspension Type - Rear: Tapered Leaf
- Spring Capacity - Front (lbs): 7000
- Spring Capacity - Rear (lbs): 13500
- Axle Type - Front: Reverse I Beam
- Axle Type - Rear: Single Speed
- Axle Capacity - Front (lbs): 6250
- Axle Capacity - Rear (lbs): 13500
- Axle Ratio (:1) - Rear: 4.78
- Shock Absorber Diameter - Front (mm): 35
- Stabilizer Bar Diameter - Front (in): 2
- Brake Type: Pwr 2 Piston
- Brake ABS System: 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 15 x 1.5
- Rear Brake Rotor Diam x Thickness (in): 15 x 1.5
- Front Tire Order Code: XTN
- Rear Tire Order Code: YTN
- Front Tire Size: 225/70R19.5F
- Rear Tire Size: 225/70R19.5F
- Front Tire Capacity (lbs): 7280
- Rear Tire Capacity (lbs): 13660
- Revolutions/Mile @ 45 mph - Front: 646
- Revolutions/Mile @ 45 mph - Rear: 623
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Number Of Tires Spare: 1
- Front Wheel Size (in): 19.5 x 6.75
- Rear Wheel Size (in): 19.5 x 6.75
- Front Wheel Offset (mm): 5.60
- Rear Wheel Offset (mm): 5.60
- # of Bolt Holes - Front: 8
- # of Bolt Holes - Rear: 8
- # of Bolt Holes - Spare: 8
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material: Steel
- Front Wheel Description Cont.: Hub Piloted
- Rear Wheel Description Cont.: Hub Piloted
- Front Bolt Pattern: 8stud/275mm
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 16.1
- Steering Ratio (:1), At Lock: 19.6
- Frame Type: Ladder-Type
- Sect Modulus Rails Only (in³): 7.63
- Frame RBM (N/A): 381500
- Frame Strength (lbs): 80000
- Frame Thickness (in): 0.24
- Width, Max w/o mirrors (in): 95.9
- Height, Overall (in): 89.5
- Overhang, Front (in): 37.0
- Front Bumper to Back of Cab (in): 102.5
- Frame Width, Rear (in): 2.84
- Passenger Capacity: 2
- Front Head Room (in): 40.6
- Front Leg Room (in): 41.1
- Front Shoulder Room (in): 66.8
- Front Hip Room (in): 63.8
- Vehicle Name: Chevrolet CC5500
- Body Style: Cutaway Chassis Cab
- Driver Ratio: 0.75
- Torque @ Clutch Engage (ft-lbs): 345
- Torque Converter: 1.73
- Torque Converter: 1.00
- Static Loaded Radius (in): 17.2
- Max Speed For Gradeability: 75
